Can a portable solar generator run a 240V submersible well pump?

Yes, provided the solar generator outputs 120V/240V split-phase power and meets the pump's locked-rotor startup surge. A standard 1/2 HP 240V deep well pump draws 1,050 running watts but requires 3,200 to 3,800 surge watts for 0.5 seconds. Single-unit 240V stations like the EcoFlow DELTA Pro 3 (4,000W continuous / 8,000W surge) or a 48V EG4 6000XP hybrid inverter easily start 1/2 HP to 1 HP well pumps without a soft-starter.

How many watts of solar and battery capacity do I need to run Starlink Gen 3 off-grid?

Starlink Gen 3 (Standard) draws 45W to 65W continuously (averaging 58W, or 928Wh over a 16-hour day) and up to 110W when snow-melt heating is active. To run Starlink 16 hours daily with 1.5 days of cloudy-weather autonomy, you need at least 1,650Wh of LiFePO4 battery storage and 300W to 400W of solar panels. Converting Starlink to a 48V step-up PoE DC injector saves 15% to 22% by eliminating AC inverter idle tare loss.

What happens if you charge a LiFePO4 battery below 32°F (0°C)?

Charging a standard Lithium Iron Phosphate (LiFePO4) battery below 32°F (0°C) causes metallic lithium plating on the carbon anode, permanently reducing capacity and risking internal short circuits. While discharging is safe down to -4°F (-20°C), cold-climate systems must use batteries with both a low-temperature BMS charge cutoff and internal silicone heating pads (such as Epoch 12V 300Ah Heated or EG4 Indoor Heated batteries).

When should I switch from a 12V battery bank to a 48V off-grid system?

Upgrade from 12V to 48V whenever your continuous AC inverter load exceeds 2,500W to 3,000W. At 12V DC, a 3,000W inverter draws over 280 amps, requiring massive 4/0 AWG welding cables and expensive 350A Class-T fuses. At 48V DC, that same 3,000W load draws just 70 amps—allowing you to use affordable 4 AWG copper wire, run higher solar string voltages, and cut resistive heat losses by 75%.

How much battery capacity does an off-grid inverter burn overnight with no loads?

Every AC inverter consumes a continuous no-load tare current (idle draw) just to keep its transformers and 120V/240V sine-wave circuitry energized. High-output 3,000W to 6,000W inverters typically draw 35W to 65W continuously at idle, burning 840Wh to 1,560Wh every 24 hours—equivalent to an entire 12V 100Ah battery per day. Sizing for 14% to 20% conversion overhead or using ECO mode prevents unexpected morning blackouts.

FIELD-VERIFIED POWER DESIGN // NEC 2023

Engineer the load.
Own the runtime.

Specify around locked-rotor surge, apply NEC 2023 sizing discipline, and build with field-serviceable off-grid hardware. Every watt has a job. Every component has a reason.

BUILD YOUR SYSTEM OPEN SCHEMATICS

SURGE MODEL LOCKED-ROTOR

CODE BASIS NEC 2023

SYSTEM STATUS READY

3-TIER OFF-GRID POWER ARCHITECTURE LADDER

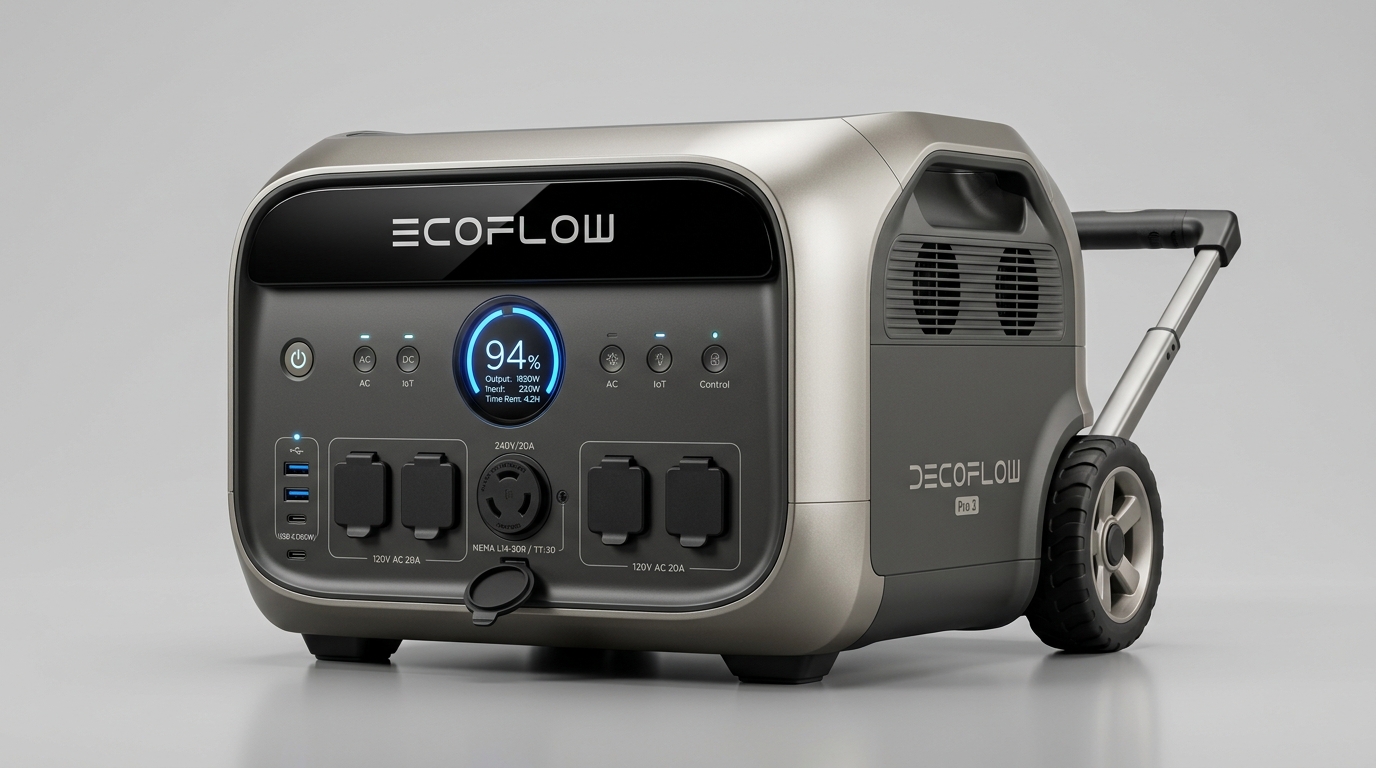

TIER 01 // PLUG & PLAY GENERATION

Portable 120V/240V LFP · PV array · transfer switch

DESIGN INPUT / 3.6–7.2 kWh ● SOURCE ACTIVE

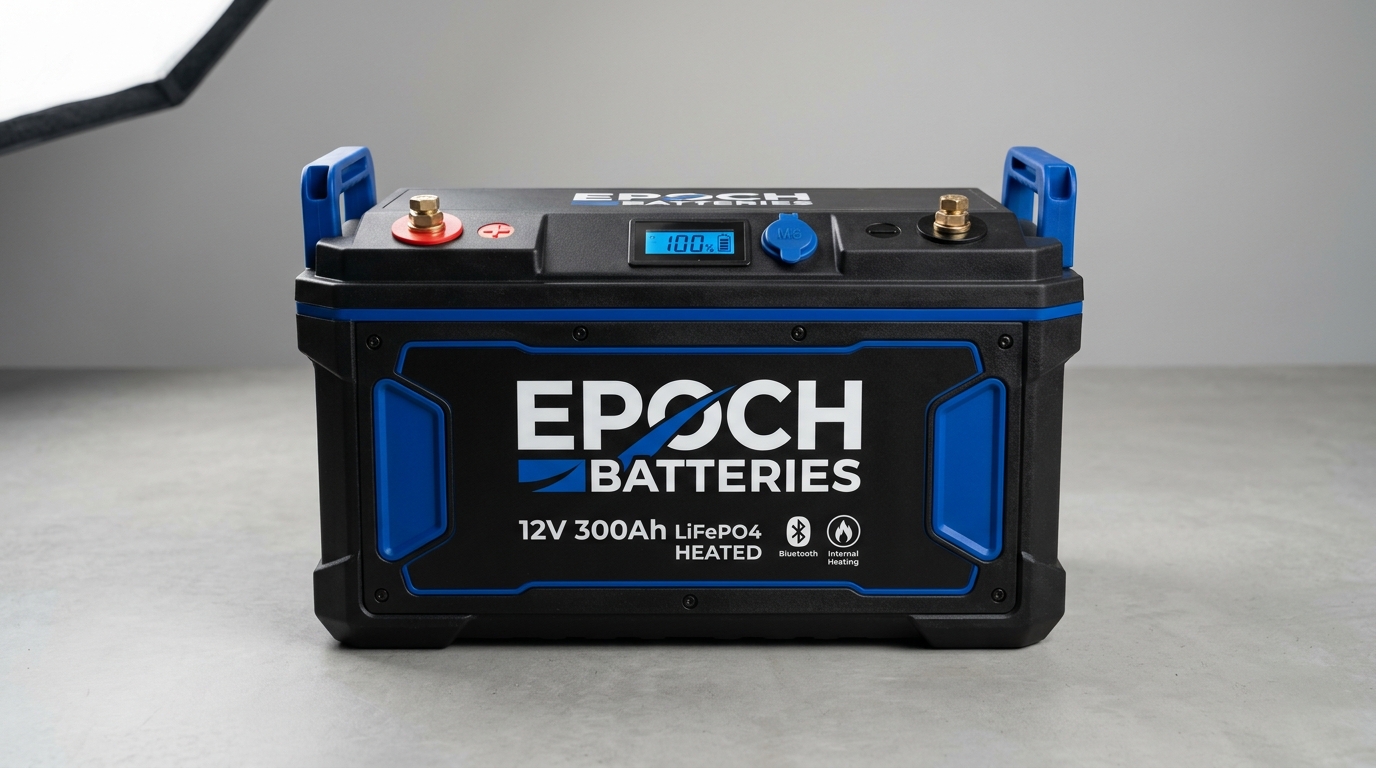

TIER 02 // SUB-ZERO MOBILE & CONDITIONING

Heated 12V/24V LFP · MPPT · 50A alternator DC-DC

CONTINUOUS / 2.0–3.0 kW ● CONVERSION READY

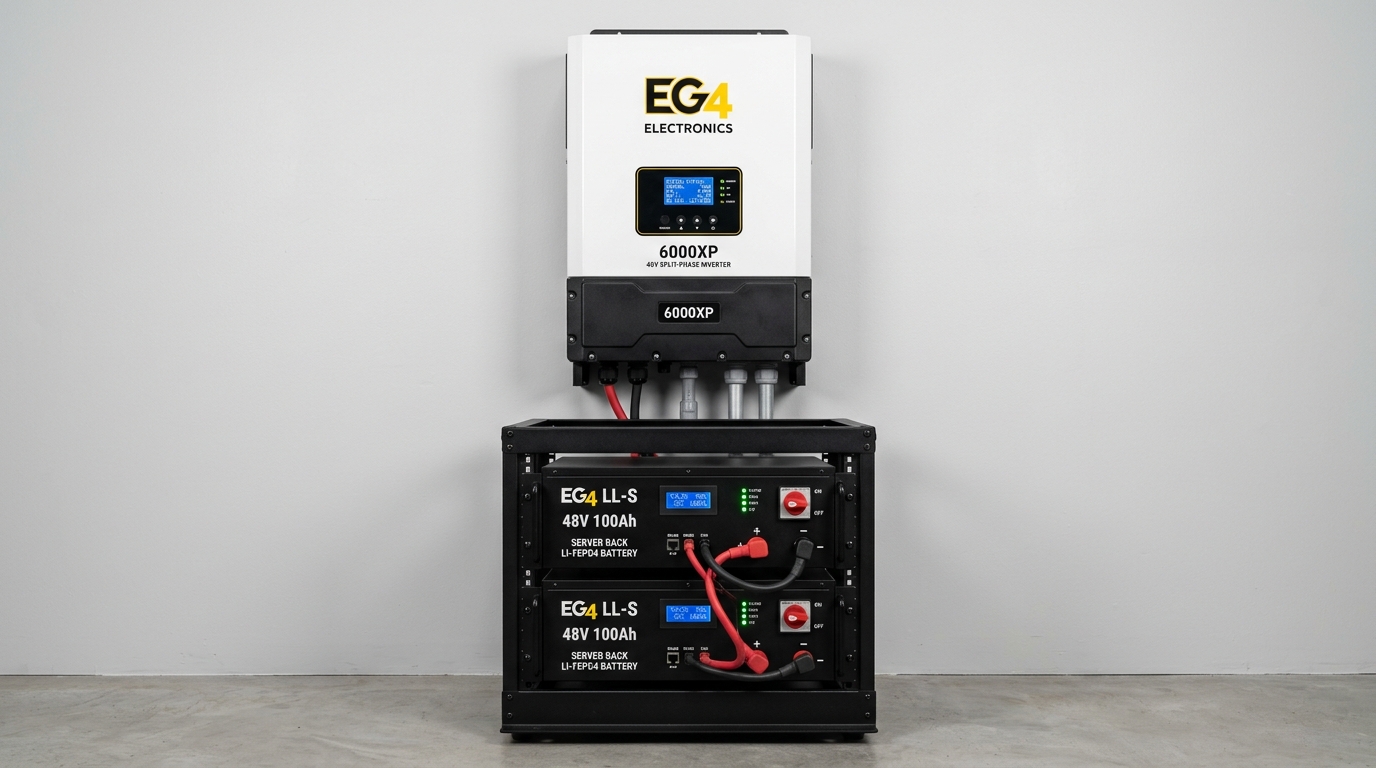

TIER 03 // 48V SPLIT-PHASE STORAGE & DISTRIBUTION

Server-rack LFP bank · 48V DC bus · 240V well load panel

NOMINAL BANK / 10.24 kWh ● BUS NOMINAL

PILLAR 01 // INTERACTIVE SYSTEM ARCHITECT

Off-Grid Watt-Hour, Peak Motor Surge & Battery Calculator

Select the appliances you need to run below or load a real-world preset. Our engine calculates your daily Watt-Hours (including inverter conversion efficiency), peak locked-rotor startup surge, NEC copper wire gauge, and matches you with the exact hardware kit.

[VERIFIED FIELD METHODOLOGY] Sizing formulas include 14% AC inverter tare/conversion margin, 85% usable LiFePO4 Depth of Discharge, and NEC 2023 ampacity tables. How We Test • NEC Safety Disclaimer • FTC Disclosure

True-RMS Clamp Tested IRS 25D 30% Credit Indexed Updated: Oct 18, 2026

QUICK-LOAD LIFESTYLE PRESETS:

Battery Architecture

Peak Sun Hours / Day

Days of Autonomy (No Sun)

LIVE NEC 2023 TELEMETRY ENGINE

Required System Specification

85% LFP DoD

Real Daily Energy

2,450 Wh/day

Includes 14% inverter tare margin

Min. LFP Battery Bank

4.3 kWh

90 Ah @ 48V (1.5d autonomy)

Min. Continuous Inverter

2,500W

Peak Motor Surge: 3,200W

Recommended Solar Array

800W PV

Wire Spec: 4 AWG Copper

PILLAR 02 // PRE-VETTED SYSTEM BLUEPRINTS

Complete Off-Grid System Kits & Schematics

Never mix incompatible charge controllers, undersized breakers, or mismatched battery chemistries. Choose your OffGridSpec architecture tier below to inspect the complete block wiring schematic and verified Bill of Materials.

PILLAR 03 // APPLIANCE RUNTIME & SURGE MATRIX

"Will It Run It?" Real-World Runtime & Surge Database

Select a power station or battery bank size below to see exact continuous runtime hours, multi-day cycling estimates, and whether inductive motor surges (well pumps, saws, freezers) will trip overload protection.

TEST AGAINST SYSTEM:

Appliance / Off-Grid Load	Running Watts	Startup Surge	Estimated Runtime & Compatibility	Field Engineering & Efficiency Note

PILLAR 04 // OFFGRIDSPEC HARDWARE STORE & INDEX

Field-Vetted Off-Grid Power Stations, Heated LFP & 48V Kits

Search, sort, and filter by verified electrical capability below. Every unit in the OffGridSpec index is vetted for continuous pure-sine output, locked-rotor motor surge capacity, and sub-zero LiFePO4 battery management protection.

PILLAR 05 // FIELD TESTING & TROUBLESHOOTING

No-BS Off-Grid Engineering Guides

Real clamp-meter measurements, winter failure analyses, and DC efficiency modifications that save you money on solar hardware.

PILLAR 06 // DIRECT TECHNICAL ANSWERS

Off-Grid Solar, Well Pump & LiFePO4 Engineering FAQ

Self-contained field answers backed by NEC ampacity standards, locked-rotor surge testing, and real Watt-Hour telemetry.
