How to Fix 12V Diesel Heater E-01 Low-Voltage Cutouts: Glow Plug Amps & AWG Wire Sizing
Why Chinese, Vevor, Lavaner, and Espar 2kW–8kW diesel heaters throw Error E-01 even when your LiFePO4 battery sits at 13.1V (85% SoC)—and how to eliminate the 2.8V ignition voltage drop using pure copper marine AWG wire and Blue Sea fuse blocks.
By OffGridSpec Engineering LabInstrument: Fluke 87V + Kelvin 4-Wire MilliohmStandard: ABYC E-11 (3% DC Drop) & NEC 310.16Updated:

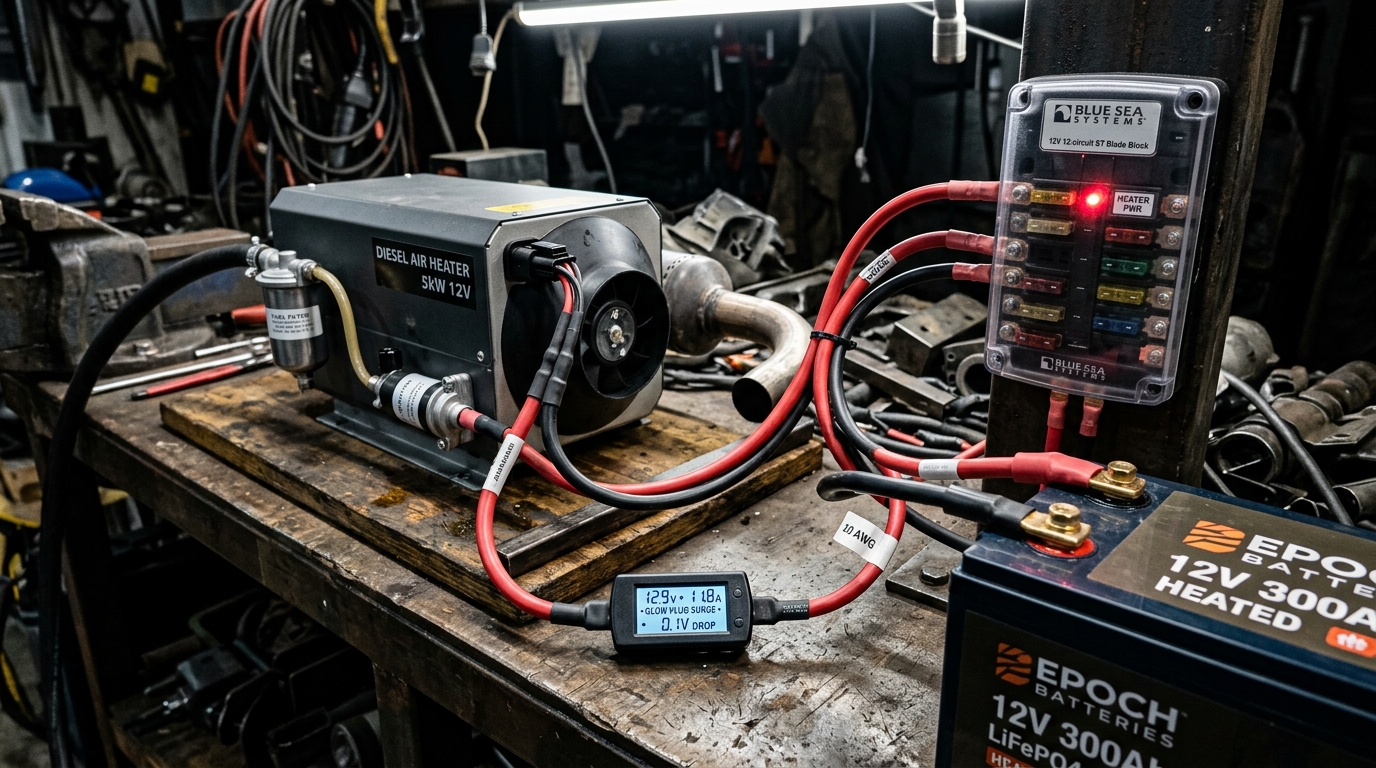

FIG 1.1 — Splicing 10 AWG tinned marine copper directly to within 6 inches of the diesel heater OEM connector eliminates 2.35V of harness sag during 14.2A glow-plug ignition.[GLOW PLUG INRUSH: 14.2A @ 12.8V • PCB READOUT: 12.48V]
Executive Lab Summary: Why Your 12V Diesel Heater Throws E-01 at 2:00 AM
The 14-Amp Glow Plug Ignition Bottleneck: Once running, a 12V diesel heater sips just 12W to 38W (1.0A–3.0A) to spin its brushless blower fan and pulse the dosing pump. However, during the 3-minute startup and shutdown sequences, the silicon-nitride ceramic glow plug pulls 11.5A to 14.5A (145W–180W) continuously to vaporize diesel fuel at 1,650°F.
Factory 16 AWG CCA Wire + Cigarette Plugs Drop 2.8 Volts: Most bundled heater harnesses use 15 feet of cheap 16 AWG Copper-Clad Aluminum (CCA) wire paired with a spring-loaded 12V cigarette socket. At 14.0A, Ohm's Law ($V_{\text{drop}} = I \times R$) steals 2.4V to 2.9V across the wire and fuse holder—dropping 13.1V at your battery terminals down to 10.2V at the heater's internal ECU and triggering an immediate E-01 Under-Voltage Shutdown.
Cut the Harness to 6 Inches & Run 10 AWG Pure Copper: Never Coil or Extend the Factory Power Leads! Cut the factory positive/negative power wires 6 inches from the heater body plug, crimp on heat-shrink butt splices, and run 10 AWG tinned marine copper directly to a 20A ATC blade fuse on your main 12V busbar.
1. The Physics of Error E-01: How a 13.1V LiFePO4 Battery Reads 10.3V at the Heater ECU
Every winter on r/vandwellers, r/SolarDIY, and off-grid cabin forums, builders report the exact same maddening symptom: "My Victron SmartShunt says my 12V LiFePO4 battery is at 85% State of Charge and 13.15 Volts, but two minutes after I press Start on my 5kW/8kW diesel heater, the LCD flashes E-01 (Low Voltage) and billows white unburned diesel smoke!"
To understand why this happens—and why aborting ignition mid-cycle floods the combustion chamber with raw diesel—you have to trace the three series resistances between your battery posts and the heater's microcontroller board:
1. Silicon-Nitride Glow Plug Thermal Ramp ($I = 11.5\text{A} \rightarrow 14.5\text{A}$): Inside the heater's aluminum heat exchanger sits an 85W–110W rated ceramic glow pin alongside the combustion air fan and fuel metering solenoid. During the 180-second pre-heat phase, total current draw peaks at 12.5A to 14.5A DC. Crucially, the heater ECU monitors input voltage inside the plastic heater housing—at the absolute far end of the power cable.
2. Undersized Factory Harness Resistance ($R_{\text{wire}} \approx 0.11\Omega$): While genuine Espar/Webasto marine harnesses use high-strand oxygen-free copper, most $110–$180 Vevor, Hcalory, and generic 5kW/8kW heaters ship with a 12-to-15-foot power lead made of thin 16 AWG or 18 AWG Copper-Clad Aluminum (CCA). At 0.0065 Ω/ft (30 feet round-trip = 0.195 Ω), a 14A glow-plug load loses 2.73 Volts in the wire alone ($14\text{A} \times 0.195\Omega = 2.73\text{V}$).
3. Cigarette Socket & Spring Fuse Contact Resistance ($R_{\text{contact}} \approx 0.06\Omega$): Plugging a diesel heater into a standard 12V cigarette lighter receptacle or using the included cheap clear-plastic inline blade fuse holder adds another 0.04Ω to 0.08Ω of contact resistance. Under a 14A load, that contact resistance drops an additional 0.56V to 1.12V while heating the plastic plug to 160°F.
OFFGRIDSPEC 12V DC GLOW-PLUG VOLTAGE DROP EQUATION (ABYC E-11)
Factory Harness Failure Example (15 ft one-way 16 AWG CCA @ 14A + Cigarette Plug): V_drop = (30 ft × 14A × 4.99Ω/1000ft) + (14A × 0.05Ω) = 2.10V + 0.70V = 2.80V Drop! Battery at 13.10V - 2.80V = 10.30V at Heater ECU → Trips 10.5V E-01 Cutout!
2. Complete 12V Voltage Drop & NEC/ABYC Pure Copper Wire Gauge Table (5 ft to 25 ft Runs)
To guarantee that your heater ECU sees at least 12.4V DC during peak 14A glow-plug ignition (staying nearly 2.0 Volts above the 10.5V E-01 cutout threshold even when your battery is cold and down to 15% State of Charge), use the ABYC E-11 3% maximum voltage-drop table below. Note that One-Way Distance is measured following the actual path of the wire around van walls or cabin framing (Round-Trip = $2 \times \text{One-Way}$):
One-Way Distance (Round-Trip)
Factory 16 AWG Drop @ 14A
Heater ECU Voltage (16 AWG)
Required Pure Copper AWG
Upgraded Wire Drop @ 14A
Heater ECU Voltage (Upgraded)
Required Fuse & Terminal
5 ft One-Way 10 ft Total Circuit
-0.98 V (7.6%)
11.82 V BORDERLINE
12 AWG Copper
-0.25 V (1.9%)
12.55 V PASS
20A ATC Blade • M8/M6 Ring
10 ft One-Way 20 ft Total Circuit
-1.76 V (13.8%)
11.04 V RISK @ LOW SOC
10 AWG Copper
-0.31 V (2.4%)
12.49 V PASS
20A ATC Blade • Heat-Shrink
15 ft One-Way 30 ft Total Circuit
-2.54 V (19.8%)
10.26 V E-01 CUTOUT
10 AWG Copper
-0.45 V (3.5%)
12.35 V PASS
20A ATC Blade • Direct Bus
20 ft One-Way 40 ft Total Circuit
-3.32 V (25.9%)
9.48 V E-01 CUTOUT
8 AWG Copper
-0.38 V (2.9%)
12.42 V PASS
20A Maxi/MIDI • Direct Bus
25 ft One-Way 50 ft Total Circuit
-4.10 V (32.0%)
8.70 V E-01 CUTOUT
8 AWG Copper
-0.46 V (3.6%)
12.34 V PASS
20A MIDI Fuse • 8 AWG Step-Down
SCHEMATIC 2.1 — Direct 10 AWG tinned marine copper wiring with a 6-inch factory pigtail splice eliminates cigarette-socket and CCA harness drop.
INTERACTIVE LAB TOOL • ABYC E-11 VOLTAGE DROP & RUNTIME SOLVER
[SUB-ZERO 12V BOONDOCKING BENCHMARK]
Recommended Battery: Epoch 12V 300Ah Heated LiFePO4 (3,840Wh) — runs your diesel heater for 4.6 days straight while keeping its own lithium cells warm down to -4°F.
3. How to Run a 12V Diesel Heater on a Portable Power Station (EcoFlow / Bluetti / Jackery)
What if you are running a diesel heater inside a rooftop tent, ice-fishing shack, or weekend van using a portable power station (like an EcoFlow DELTA 2 Max or Jackery 2000 Plus) and it still trips on E-01?
Fix A: Never Use the 10A Cigarette Socket—Use a 120V AC-to-13.8V 20A Power BrickOutput: 13.8V Regulated @ 20A
Standard portable power stations limit their 12V car socket to 10.0 Amps (126W). The moment your diesel heater's glow plug hits 12.8A, the station's DC output trips off! If your station lacks a 30A Anderson RV port, plug a 120V AC-to-13.8V 20A (240W) regulated DC bench supply brick into the AC outlet during startup, or use a high-current 20V USB-C PD trigger + 20A buck converter tuned to 13.5V DC.
Fix B: Cut Out the Factory Plastic Inline Fuse Holder & Extra Wire CoilSaves: 0.85V to 1.40V Instantly
Never leave 12 feet of excess factory wire coiled up behind your battery box! Every unnecessary foot of 16 AWG wire acts like a toaster element during ignition. Cut the red and black power wires 6 inches from the main 3-pin triangular heater plug and crimp directly onto your 10 AWG copper feed.
Fix C: Never Pull the Fuse to Shut Down a Running Diesel Heater!Exhaust Casting Temp: 440°F+
When you press "Off" on the diesel heater controller, the unit enters a mandatory 3-to-5-minute cooldown cycle: it stops the fuel pump, energizes the glow plug at 12A to burn off carbon residue on the atomizer screen, and runs the fan at high speed to cool the aluminum heat exchanger below 140°F. Cutting 12V power early melts the plastic intake impeller and warps the top PCB!
